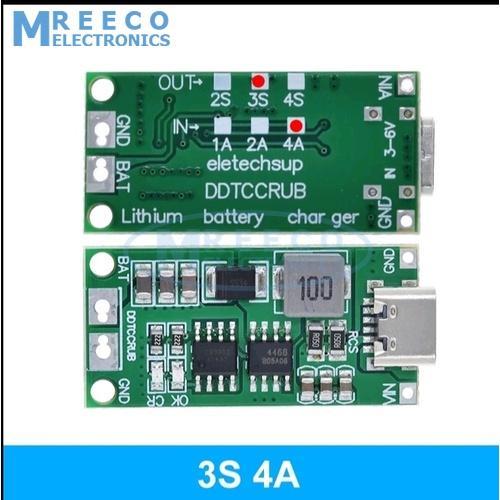

Overview
This charging circuit module is designed for 3.7V Li-ion and LiPo batteries with compatibility for 2S, 3S, and 4S configurations. Featuring a Type-C interface, it operates across an input voltage range of DC3-6V and provides output options of 8.4V, 12.6V, and 16.8V. Ideal for various DIY and outdoor projects, this compact module is suited for both hobbyists and professionals seeking reliable charging solutions.
Features
- Compatible with diverse battery configurations (2S, 3S, 4S)
- Input current capability of up to 4A
- Type-C connection for easy charging
- Supports multiple applications in electrical circuitry
- Provides battery overvoltage protection for safety
Specifications
Switching frequency: Up to 1MHz
Battery protection: Short circuit and overvoltage
Working temperature: -40℃ to 85℃
Size: 39mm x 18mm x 6.3mm
Weight: 5g
Applications
This charging module can be effectively used in:
- PDA, MP3, and MP4 players
- Digital cameras
- Bluetooth devices
- Gaming consoles and portable devices
- Notebooks and mobile phones
- Solar charging systems
- Audio equipment
- POS systems and electric fans
