Description
Description:

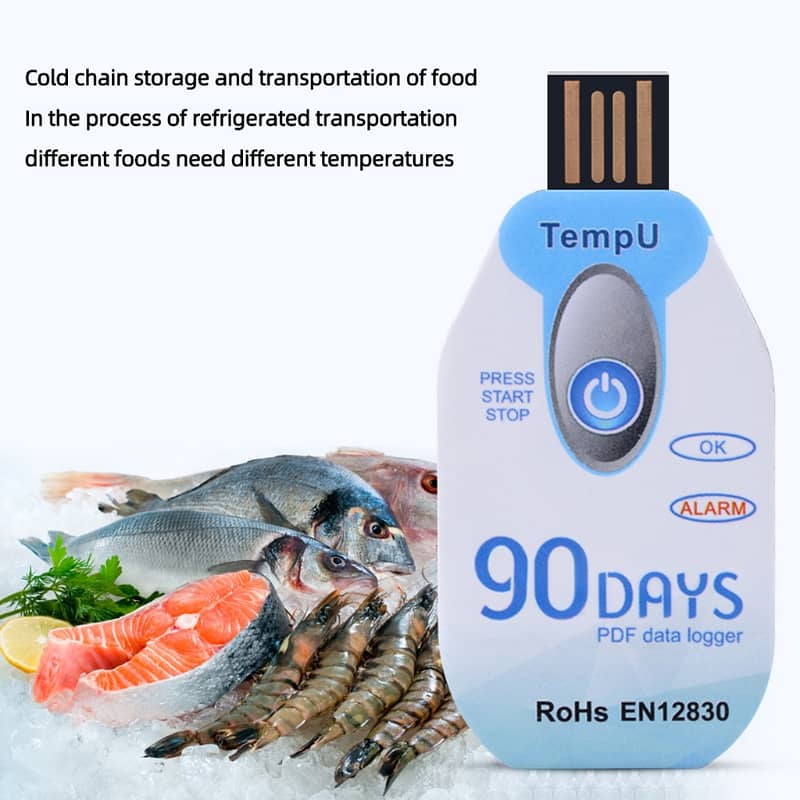

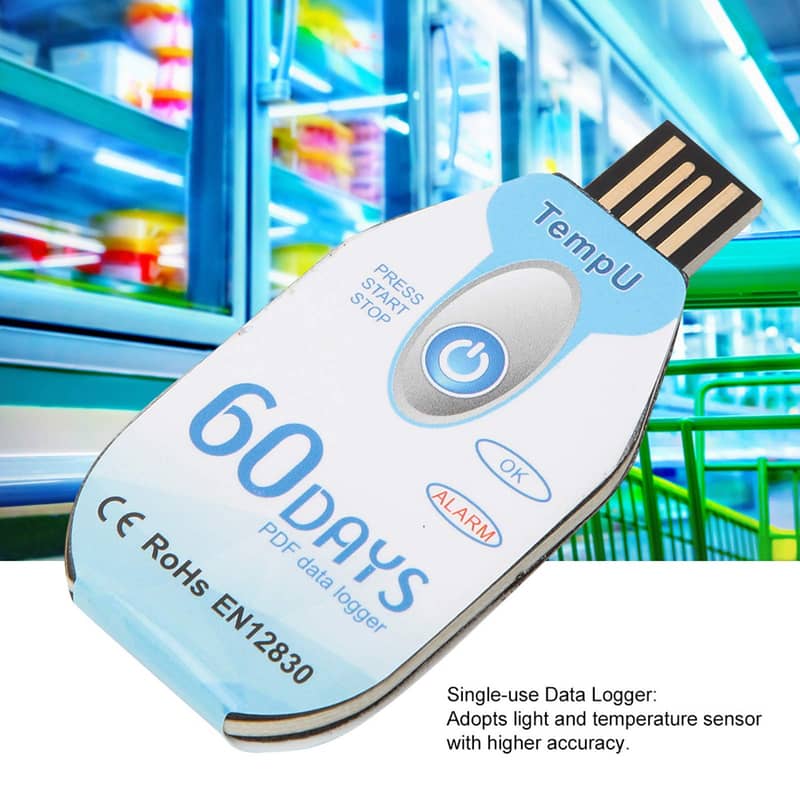

Single-use PDF Temperature Data Logger
Small, light, waterproof and in a food safe wrapper, the single-use data logger is ideal for monitoring the temperature of shipments in transit. Recordings are started by pressing the start button. The data logger is then placed inside the carton and dispatched. At the receiving end, the data logger is taken from the package and removed from the protective wrapper. It is placed into the USB slot on a computer to get a PDF report directly without any software and driver.
This data logger is used mainly to monitor and verify temperature-sensitive goods, equipment or areas. Example: Cold Chain, Refrigeration, transportations and food & pharmaceutical.
· Encrypted PDF Report: Automatically generating encrypted PDF report, no software required.
· EN12830 Compliant: Complies to EN12830:1999 for transport, storage and distribution of chilled, frozen, deep-frozen, quick-frozen food and others.
· IP67 Protection Class: Food-safety and water-proof packing comply to IP67 protection class.
Specifications:
Recording Option: Single-use
Temperature measuring range: -20°C~+60°C
Resolution: 0.1°C
Accuracy: ±0.5°C(-20℃~+40℃); others, ±1℃

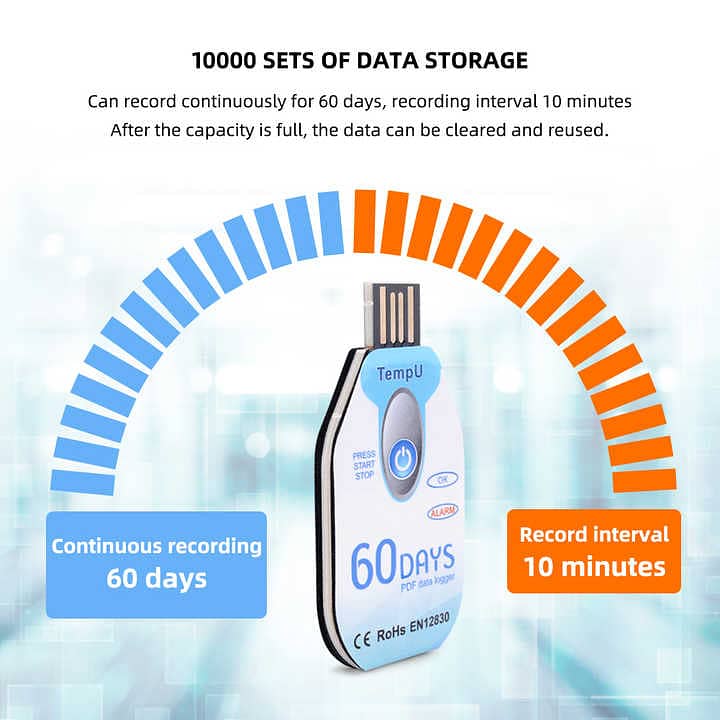

Data Storage Capacity: 10,000 readings
Recording Interval: 10 minutes (standard, others on request)
Recording Duration: 60 days
Temperature Alarm: >8°C or <2°C
Alarm Delay: 0 mins
Alarm Type: The red LED will flash every 10s if the temperature has been out of range
Start Delay: 30 mins
Report generation Automatic PDF report
Sensor: Internal NTC thermal resistor
Communication interface: USB 2.0 interface
Power supply: CR2032 button cell
Battery life: In normal temperature, 2 years
Waterproof level: IP67 (with Seal-Bag)
