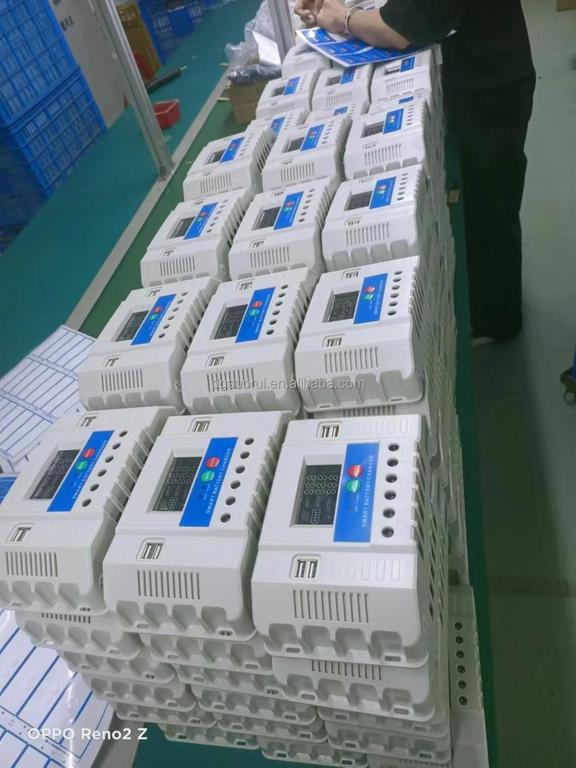

PWM Solar Battery Charge Controller SYT6-60A with Multiple USB sockets and Capacity of 12V 24V 48v and LCD Display

•Battery type:Lead Acid

•Type:PWM

•System voltage:12V/24V/48V Auto

•OEM:Accepted

•Max PV Voltage:12/24/48V

•Charge mode:PWM Mode

•Max PV Power:Accept Setting

•Rated Current:60A

•Application:Charger Controller

•Protection:Short Circuit

•Display:LCD Screen

PWM Solar Battery Charge Controller 60A with Multiple USB sockets and Capacity of 12V 24V 48v and LCD Display

System nominal voltage

12/24/48V DC Auto

Max. PV open circuit voltage 60V

Battery Type

Sealed(Default) / Gel / Flooded/User

Equalize Charging Voltage

Sealed:14.6V/ Gel: No/ Flooded:14.8V/User:9-17V

Boost Charging Voltage

Sealed:14.4V/ Gel:14.2V/ Flooded:14.6V/User:9-17V

Float Charging Voltage

Sealed/Gel/Flooded:13.8V/User:9-17V

Low Voltage Reconnect Voltage

Sealed/Gel/Flooded:12.6V/User:9-17V

Low Voltage Disconnect Voltage

Sealed/Gel/Flooded:11.1V/User:9-17V

Self-consumption

≤15mA@12v; ≤10mA@24v; ≤9mA@36v; ≤8mA@48v

Temperature compensation coefficient

-3mV/℃/2V（25℃）

Charge circuit voltage drop

≤0.53V

Discharge circuit voltage drop

≤0.16V

LCD temperature range

-20℃～+70℃

Working environment temperature

-25℃～+55℃

Relative humidity

≤95%, N.C.

Enclosure

IP30

Grounding

Common Negative

Communication

RS485 / RJ45 interface

Overall dimension(mm)

195*183*60

195*183*60

195*183*60

Mounting hole size

Φ4.2mm

Φ4.2mm

Φ4.2mm

Terminals

35mm2

35mm2

35mm2

35mm2
