Overview

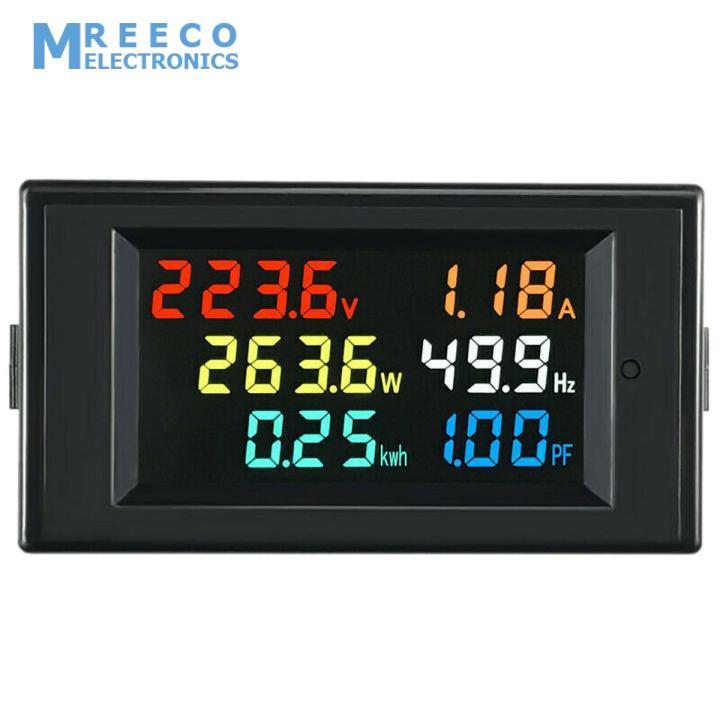

- Multi-Function AC Monitor
- Model: D69-2058
Key Features
- Active power range: 0-45000W with an accuracy of 0.1W for values between 0 and 9999.9W.
- Electric energy measurement: 0-99999 kWh, with varieties in accuracy based on the reading range.
- Installation Size: 76 x 39 mm
- Auto-Save Functionality: Retains electric energy data during power-offs.
Specifications
Voltage Range: AC 80.0-300.0V / 200.0-450.0V (choose the correct type when ordering)
Current Range: AC 0-99.99A with a resolution of 0.01A
Power Frequency: 45.0Hz - 65.0Hz
Power Factor: 0.00 - 1.00 PF
Color: Black
Material: ABS and electronic components
Dimensions: 79 x 43 x 48 mm
Included in the Package
- 1 x Meter
- 1 x CT
- 1 x Instruction Manual
Note: Other products are not included. Differences in display settings may cause slight color variations from the actual item. Measurement tolerance is +/- 1-3 cm.
