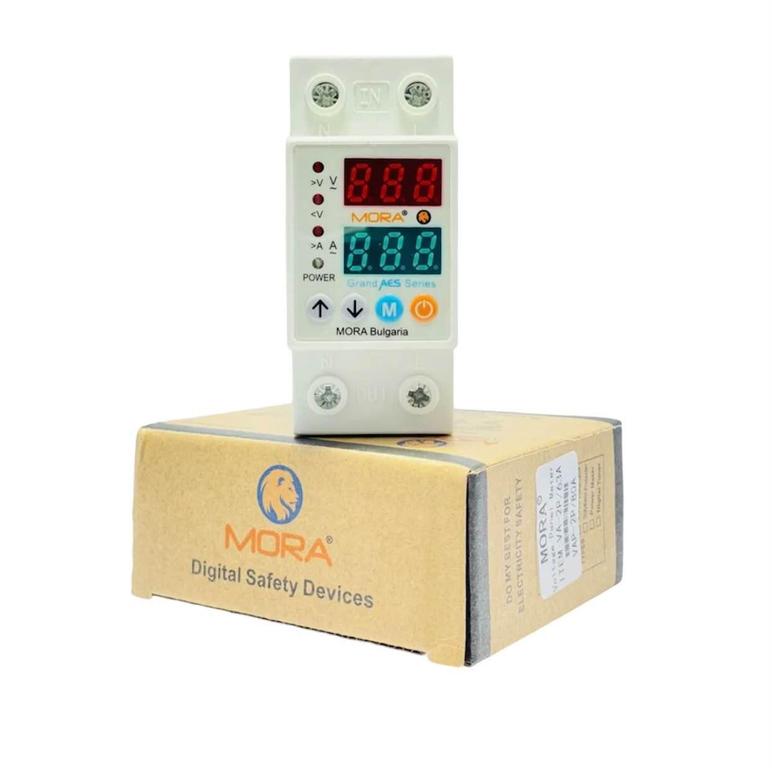

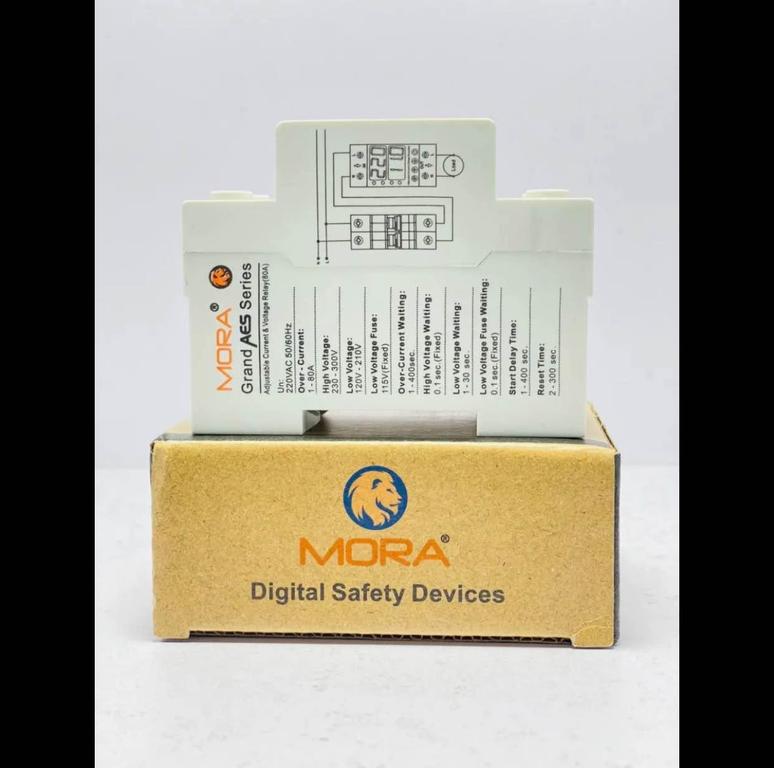

MORA Voltage Protector 80A ADJUSTABLE VOLTAGE OVER AND UNDER PROTECTOR RELAY BREAKER WITH OVER CURRENT PROTECTION DAAZLED

MORA Voltage Protector 80A ADJUSTABLE VOLTAGE OVER AND UNDER PROTECTOR RELAY BREAKER WITH OVER CURRENT PROTECTION DAAZLED

Rs 2,999

Specifications

Brand
DAAZLED™

Description

  • Rated working current: 80A
  • Overvoltage protection value: AC 230V – AC 275V ; Factory default 275V
  • Under voltage protection value: AC 160V – AC 220V; Factory default 175V
  • Automatic closing delay: 0-30 seconds; Factory default 30 seconds
  • Over-current protection value: 0-40A; Factory default 40A
  • Display range of effective voltage 70-400V
  • Display range of effective current 0-99.9A
  • Withstand lightning surge voltage in the range of 5kV
  • 8 modular contour design and guide-rail mounting
  • Rated working voltage: AC 230V, 50Hz
  • Maximum short circuit withstand current: 3000A below 40A, 4500A above 50A (action time 10ms)
  • Action time: 0-30 seconds; Factory default 30 seconds
  • Own power consumption <1.5 watt
  • Motor Mechanical life: > 100,000 times
  • Dimensions: 80 x 37 x 66 mm (L x W xH)
  • Ambient temperature = standard
  • Working environment temperature range: -25 C ~ 55 C
  • Relative humidity: 45 – 90% RH: 40 C
  • Latitude: <2000m
  • Pollution level: 2 class
  • 1x Surge VA-protector
