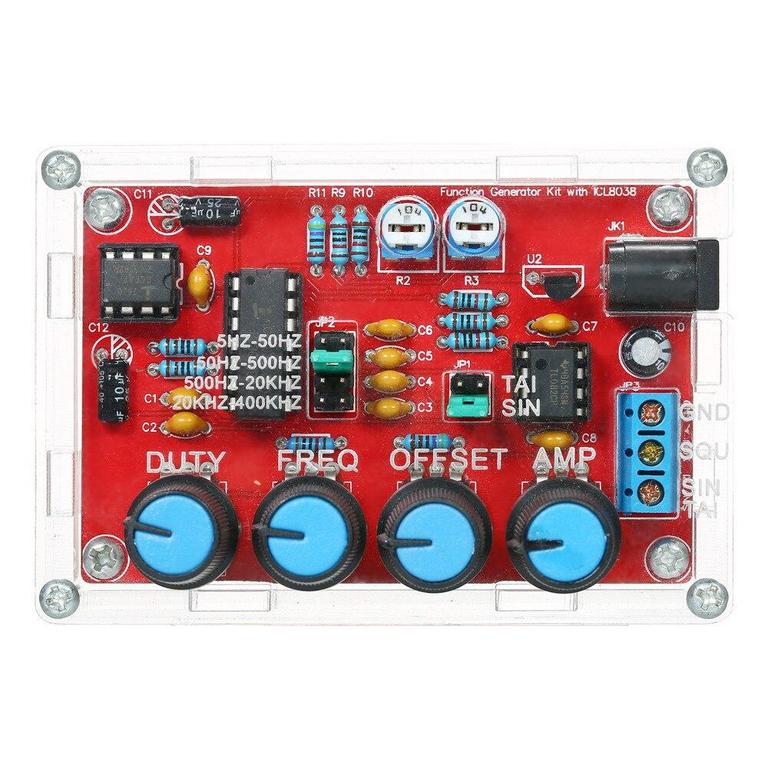

ICL8038 Signal Generator DIY Kit with Adjustable Sine, Triangle, Square, and Sawtooth Wave Outputs from 5Hz to 400kHz

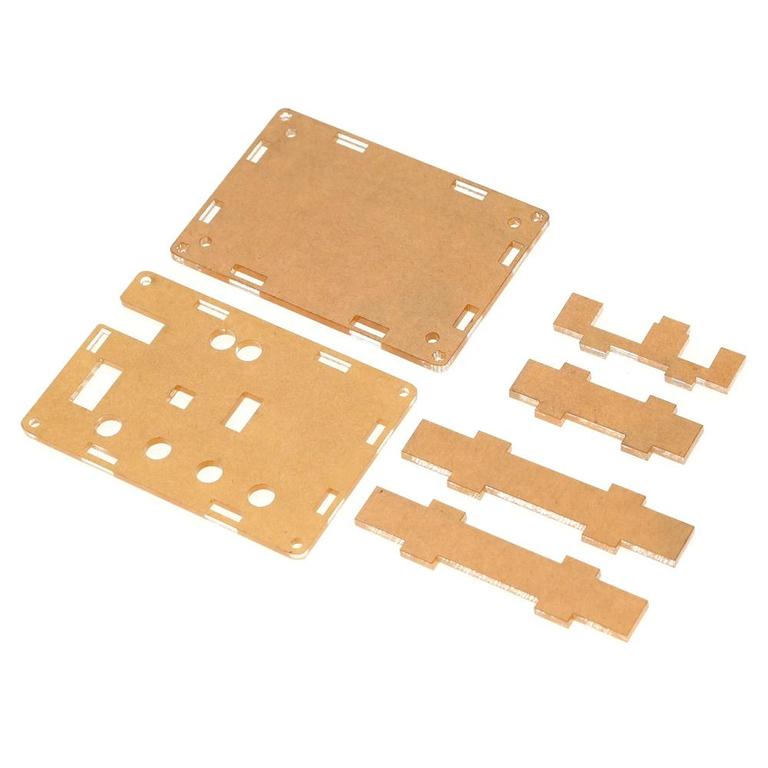

• Material: FR4 + Acrylic
• Supply Voltage: 12V to 15V
• Frequency Range: 5Hz to 400KHz (Adjustable)
• Duty Cycle Range: 2% to 95% (Adjustable)
• Low Distortion Sine Wave: 1%
• Low Temperature Drift: 50ppm / °C
• Output Triangular Wave Linearity: 0.1%

This signal generator kit provides a professional solution for generating various waveforms including sine, triangle, square, and both forward and reverse sawtooth waves. It is designed for DIY assembly, allowing you to weld and install the components.

Features

• Utilizes ICL8038 along with a high-speed operational amplifier for enhanced accuracy.
• Capable of producing sine, triangle, square, and sawtooth waveforms in both directions.
• Adjustable frequency within the range of 5Hz to 400kHz.
• Duty cycle adjustable from 2% to 95%.
• Supports dual power amplifiers without blocking capacitors for minimal distortion across all frequencies.
• Features both coarse and fine frequency tuning options.
• All components are through-hole types for easier assembly.

Specifications

• DC Bias Range: -7.5V to 7.5V
• Output Amplitude Range: 0.1V to 11VPP (at 12V operating voltage)

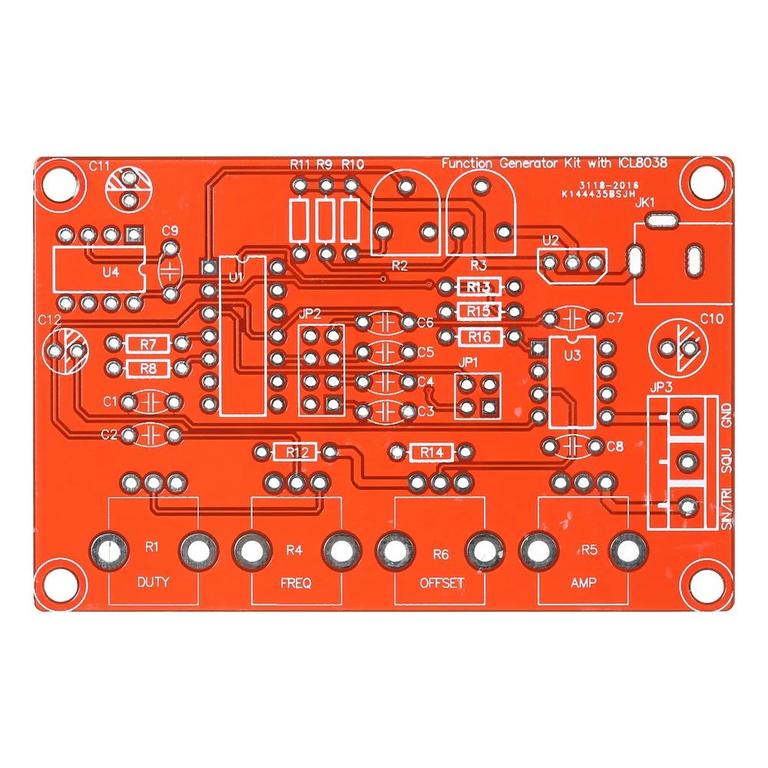

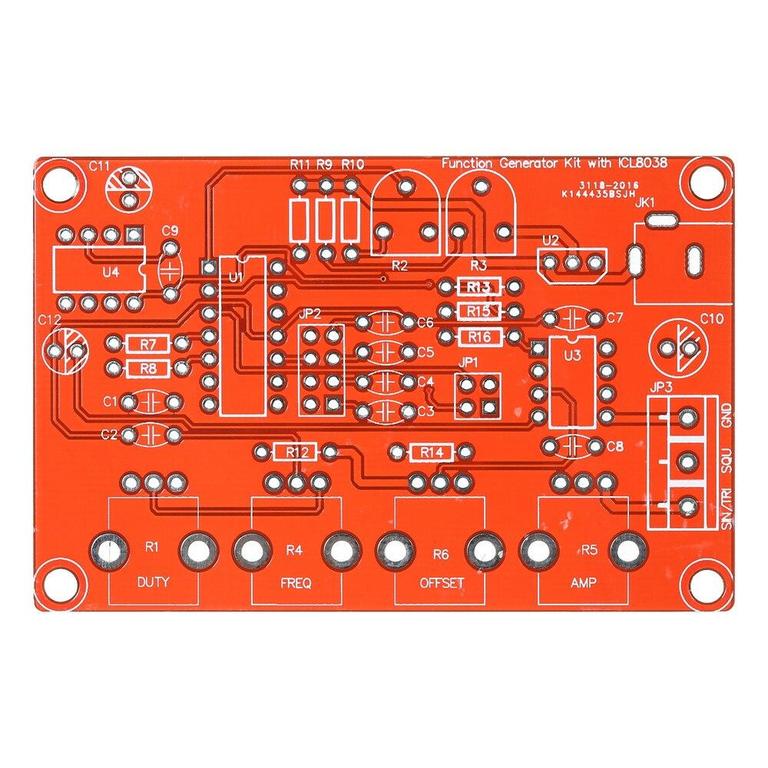

• Board Size: Approximately 7.8 x 5 cm (3.07 x 1.97 in)

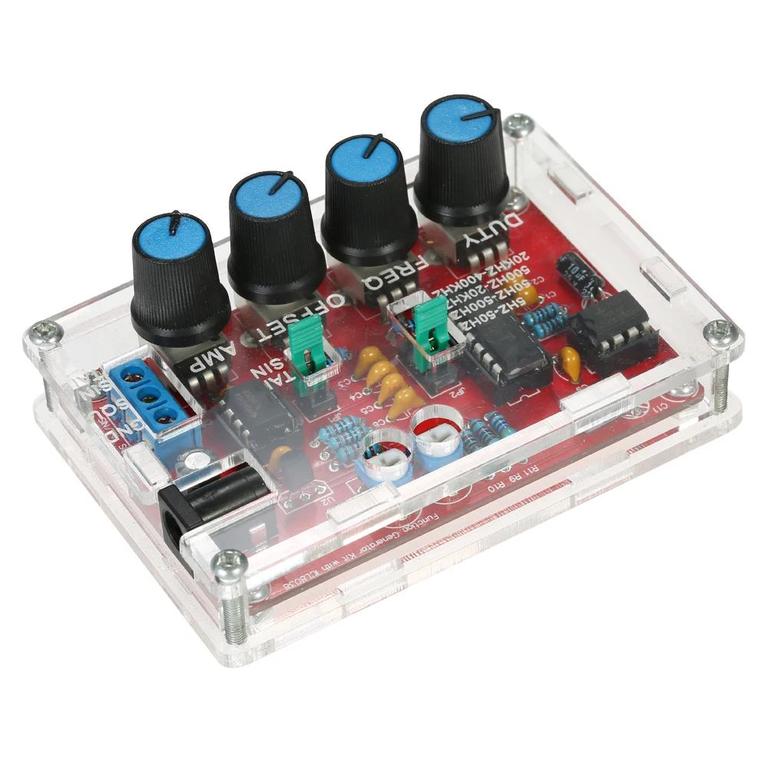

• Finished Product Size: Approximately 8.7 x 6 x 1.7 cm (3.43 x 2.36 x 0.67 in)
• Product Weight: 81g (2.86oz)
• Package Size: Approximately 11 x 7 x 3 cm (4.33 x 2.76 x 1.18 in)
• Package Weight: 95g (3.35oz)

Note

The testing picture is for reference only. Please refer to the actual product.

Package Contents

• 1 x Signal Generator DIY Kit
• 1 x User Manual (English)
