Description

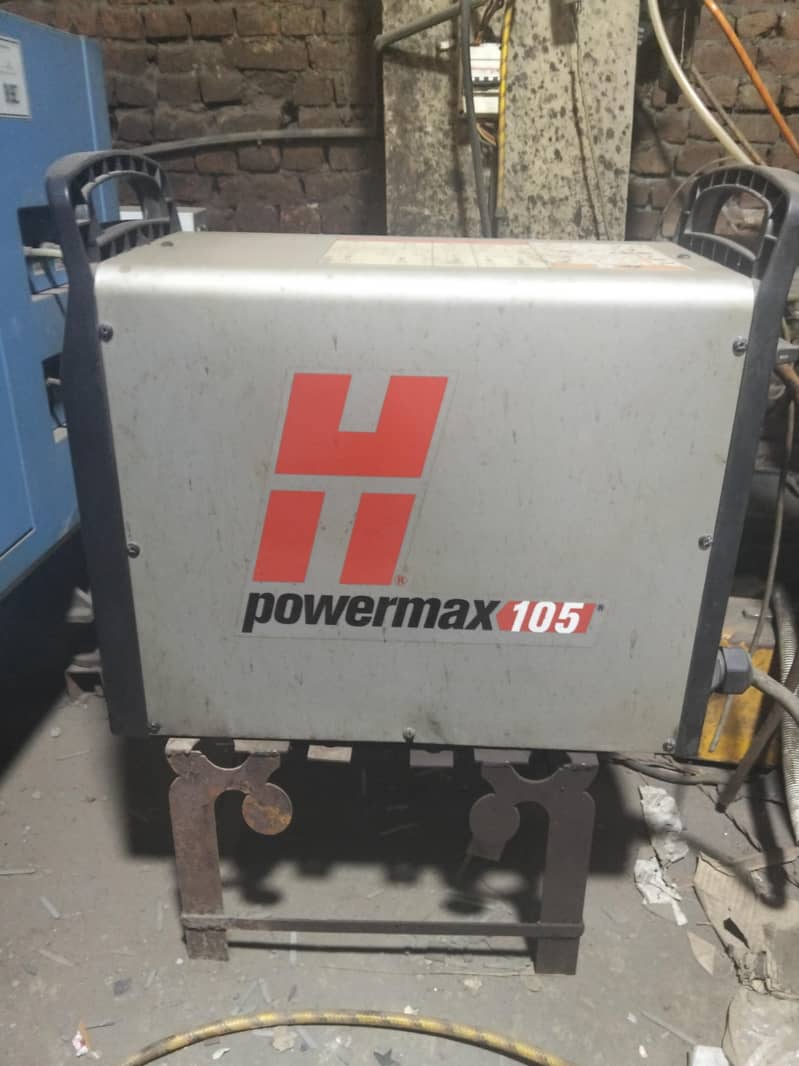

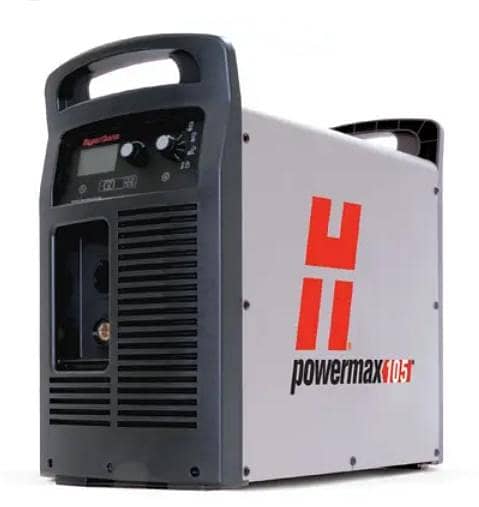

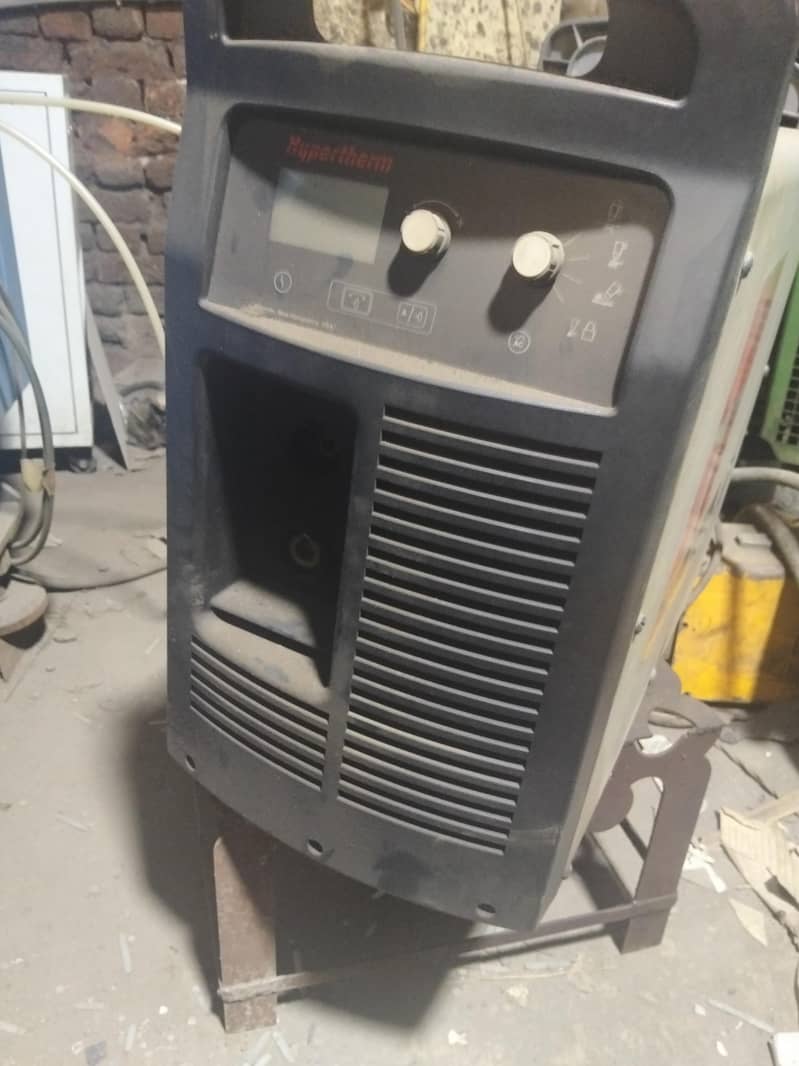

Hypertherm Power Max 105 plasma cutter
The Hypertherm Powermax105 is a professional-grade 105-amp industrial plasma cutting and gouging system designed for heavy-duty metal fabrication
Key Specifications & Capabilities
Recommended Cut Capacity: 32 mm (1-1/4″) at 500 mm/min (20 ipm)
Severance Capacity (Hand Cutting): 50 mm (2″) at 125 mm/min (5 ipm)
Pierce Rating: 22 mm (7/8″) for handheld use or automated height control
Input Power: 200–600 V, 3-phase, 50/60 Hz
Duty Cycle: 80% at 105 A
Main Features
Smart Sense™ Technology: Automatically adjusts gas pressure based on the cutting mode and torch lead length.
End-of-Life Detection: Automatically protects the torch and workpiece by shutting off power when the electrode wears out.
