Description
GPU Overview

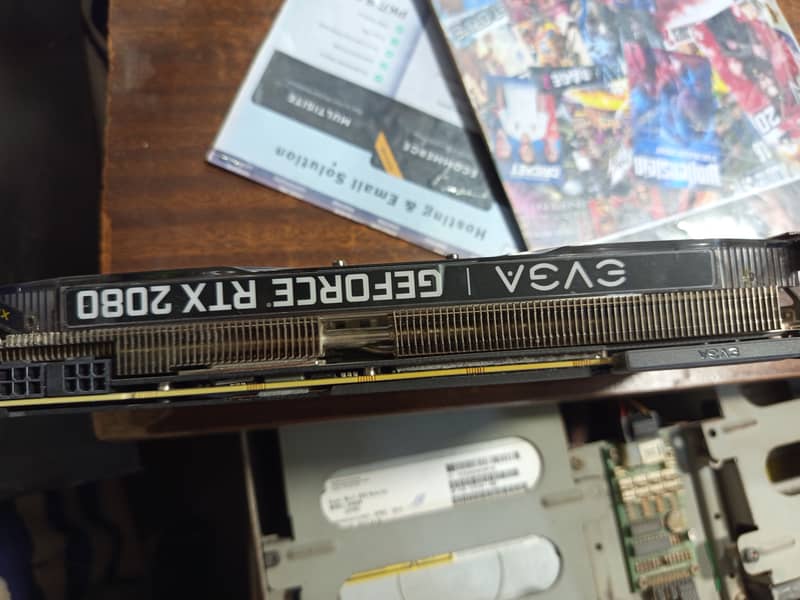

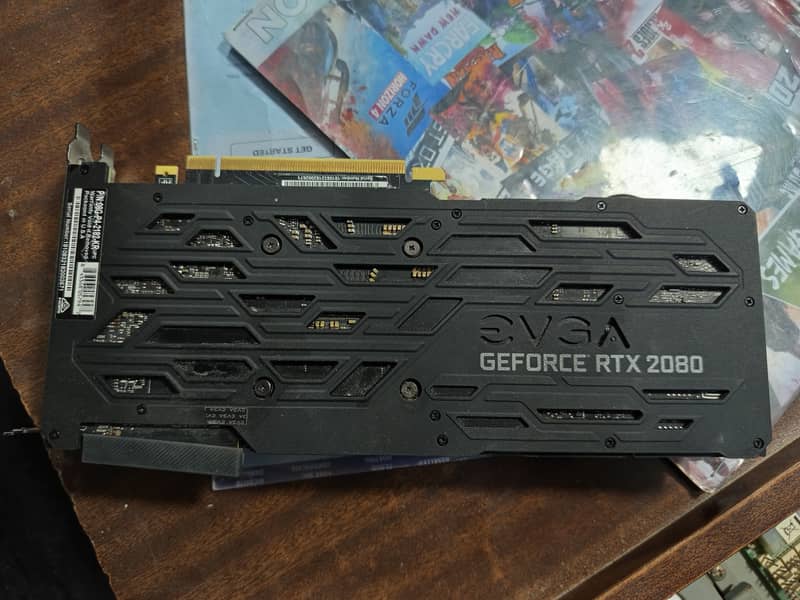

Model: EVGA GeForce RTX 2080
Architecture: NVIDIA Turing
CUDA Cores: 2944
Boost Clock: ~1710 MHz (varies slightly by model: XC, FTW3, Black, etc. )
Base Clock: ~1515 MHz
Memory
Video Memory (VRAM): 8 GB
Memory Type: GDDR6
Memory Interface Width: 256-bit
Memory Bandwidth: 448 GB/s
Effective Memory Clock: 14 Gbps
Display Support
Max Digital Resolution: 7680 × 4320 (8K)
Ports:
3 × DisplayPort 1.4
1 × HDMI 2.0b
1 × USB Type-C (VirtualLink, varies by model)
Multi-Monitor Support: Yes (Up to 4 monitors)
Technical Details
Bus Interface: PCI Express 3.0 x16
DirectX Version Support: 12 API
OpenGL Version Support: 4.6
Ray Tracing Cores: Yes (1st Generation RT Cores)
Tensor Cores: Yes (for DLSS & AI features)
Power Requirements
TDP: ~215–225 Watts
Recommended PSU: 650W or higher
Power Connectors:
1 × 6-pin
1 × 8-pin PCIe
Cooling & Design
Cooler Type: Dual or Triple Fan (varies by EVGA variant)
Cooling Technology: EVGA iCX 2.0 (on select models)
Form Factor: Dual Slot
