Boya BY-M1 Clip-On Microphone for Recordings and Presentations

Overview of the BOYA BY-M1 Omnidirectional Lavalier Microphone

• Compatible with smartphones, DSLR cameras, camcorders, audio recorders, and computers.
• Offers excellent audio quality for presentations and video recordings.
• Features an omni-directional condenser design.
• The high-quality condenser minimizes handling noise, making it ideal for video applications.
• Package includes a lapel clip, foam windscreen, and a 3.5mm to 6.3mm adapter.

Technical Specifications

• Transducer: Electret Condenser
• Polar Pattern: Omni-directional
• Frequency Range: 65Hz – 18KHz
• Signal-to-Noise Ratio: 74dB SPL
• Sensitivity: -30dB ±3dB / 0dB=1V/Pa, 1kHz
• Output Impedance: 1000 Ohm or below
• Connector: 3.5mm (1/8”) 4-pole gold plug
• Battery Type: LR44 (not included)
• Cable Length: Approximately 5.7m / 18.7ft

Microphone Usage Instructions

• For Smartphones: Turn off the microphone and slide the ON/OFF switch to the OFF/Smartphone position.
• For DSLR, Camcorders, Audio Recorders, and PCs: Switch on the microphone by sliding the ON/OFF to the ON position.

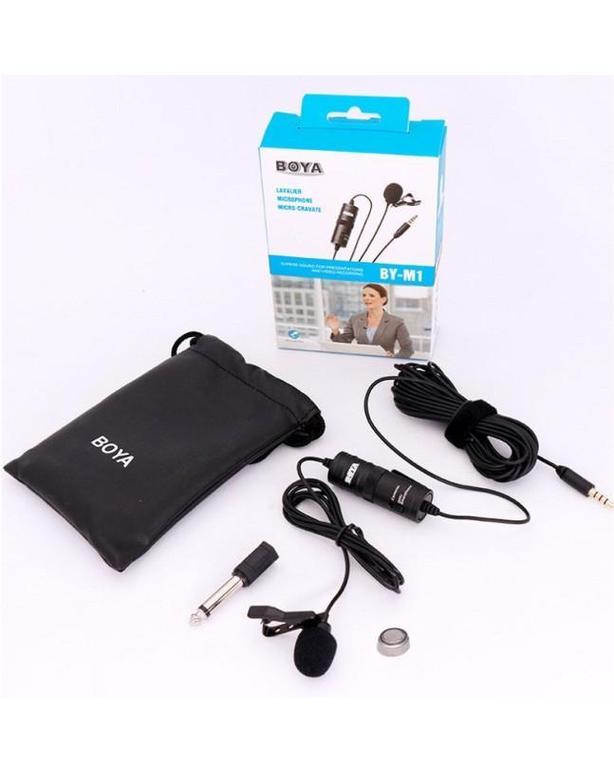

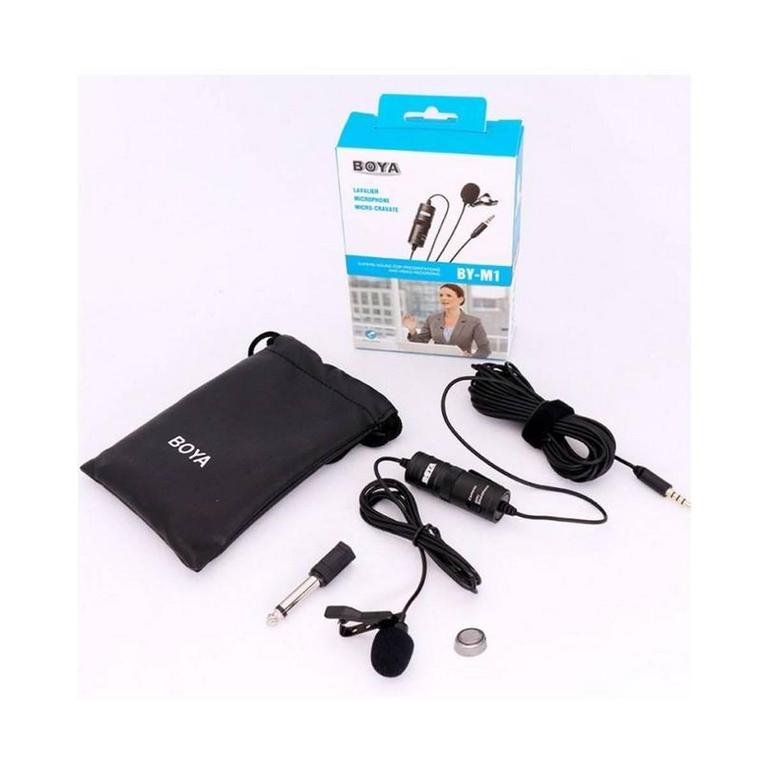

Package Contents

• 1 x BY-M1 Microphone
• 1 x Lapel Clip
• 1 x Foam Windscreen
• 1 x Adapter
• 1 x User Manual (in English)
