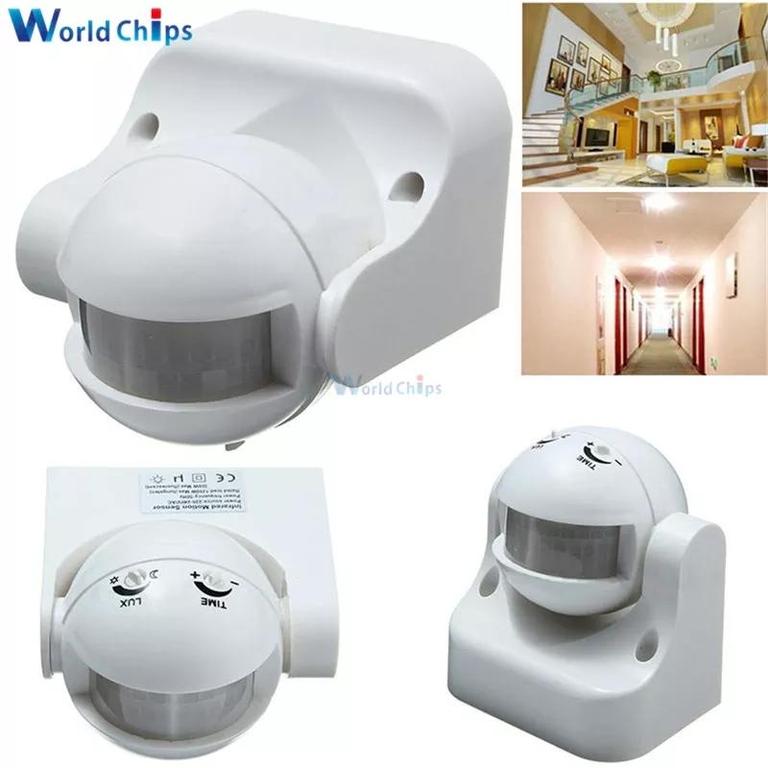

AWC Traders 220V-240V Outdoor PIR Infrared Motion Sensor Detector with 180° Detection Angle, Max 12m Distance, IP44 Rated

Product Specifications

• Power Source: 220-240V AC
• Detection Angle: 180°
• Max Detection Distance: 12m (at temperatures below 24°C)
• Power Frequency: 50Hz
• Adjustable Ambient Light: 3-2000LUX
• Operating Temperature: -20 to +40°C
• Time Delay: Minimum 10 seconds (5 seconds between) to Maximum 10 minutes (2 minutes between)
• Working Humidity: Less than 93% RH
• Ideal Installation Height: 1.8m to 2.5m
• Rated Load: 300-1200W
• Power Consumption: 0.45W (static: 0.1W)
• Detection Motion Speed: 0.6-1.5m/s

Product Features

This motion sensor detector is designed for energy-efficient lighting control, featuring high sensitivity detection combined with integrated circuit technology and surface mount technology (SMT).

It offers:

• Automatic day and night detection
• Wide detection range with comprehensive angular coverage
• Easy installation and versatile usage
• Power indication and detection display functionality

Comes with installation screws and an instruction manual for your convenience.
