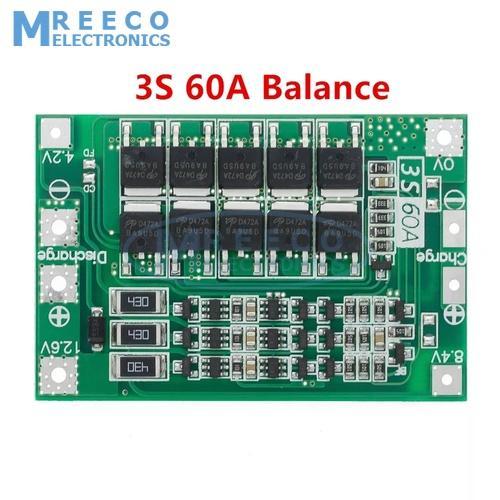

3S 60A BMS Circuit Board for 12V 11.1V/12.6V Lithium Ion/Polymer Batteries with Balance Feature

Product Overview

• Compatible with all 3-cell 12V lithium batteries, including 18650, 26650, etc.
• Supports continuous charging and discharging current of 60A.
• Maximum output power and charging capacity is 756 Watts.
• Features balance charging to equalize battery performance.
• Includes short circuit protection with delayed self-recovery.
• High-quality build ensures extended product lifespan.

Specifications

Battery Type: 3 Cells 60A Lithium Ion (li-ion 18650, 26650, etc.) Circuit Module for 12V/12.6V

Charging Voltage Range: 4.25V to 4.35V (+/- 0.05V)

Discharging Voltage Range: 2.3V to 3.0V (+/- 0.05V)

Size: 42 × 60 × 3.4 mm

Weight: Approximately 12g

Important Precautions

1. Wiring must follow the exact diagram: 0V/4.2V/8.4V/12.6V to avoid chip damage.
2. After making connections, an activation charge is necessary to enable the BMS.
